| 起源の場所: | hebei |
|---|---|
| ブランド名: | Yuntong |
| 証明: | CE , SGS |
| モデル番号: | YT-CM |
| 最小注文数量: | 10 sqm |
| Packaging Details: | Carton Box or Wooden Case |
| Delivery Time: | 5-8 Work Days |
| 支払条件: | T/T、Western Union、PayPal |
| 供給の能力: | 300sqm/week |

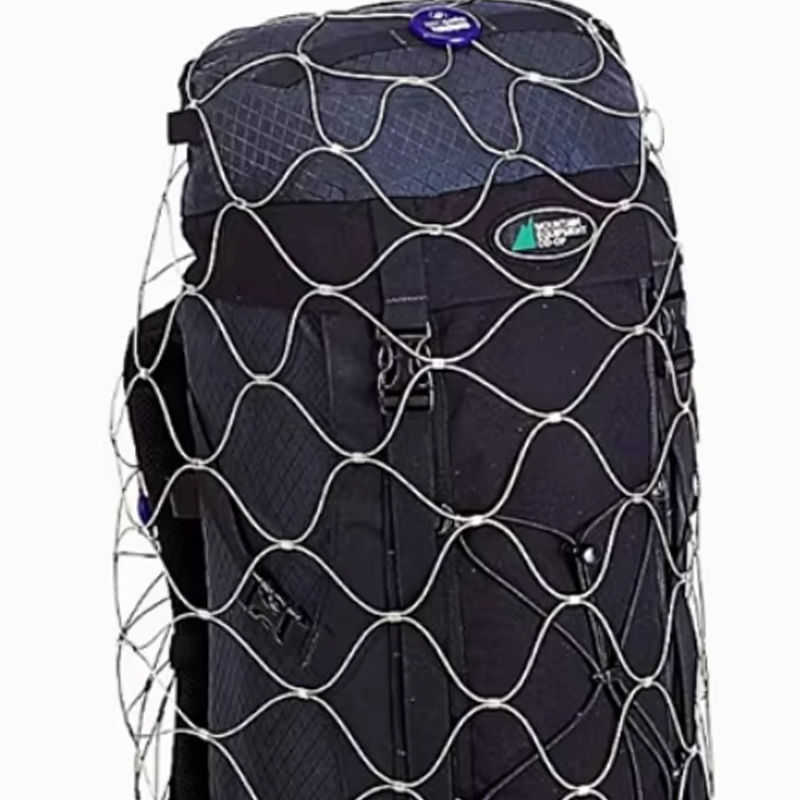

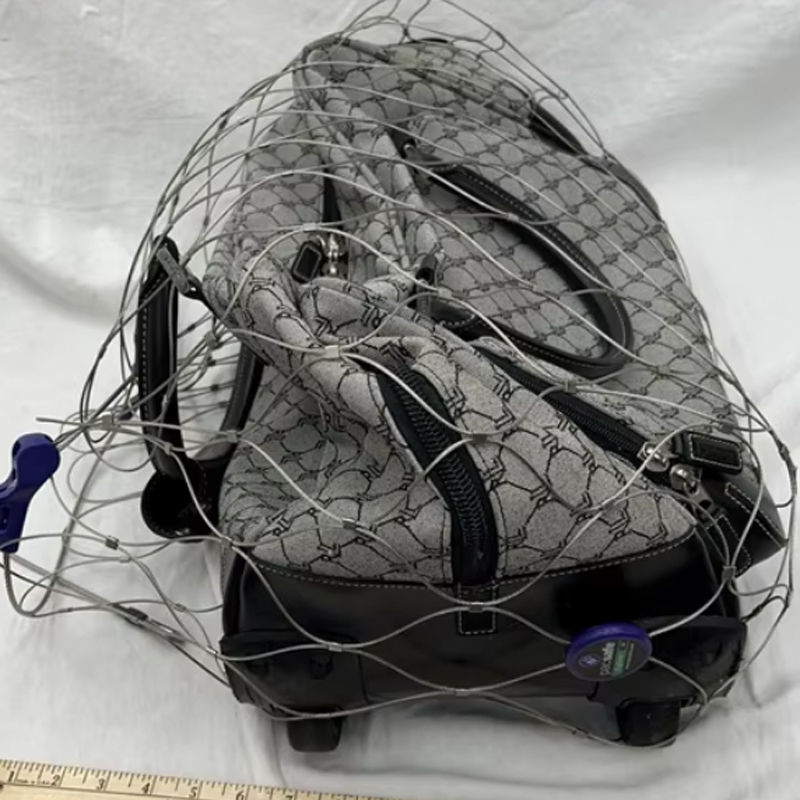

| 製品名: | ステンレス鋼のワイヤロープ網 バックパックとバッグ保護具 盗難防止 | 終了した: | 超音波Bath、黒い酸化物 |
|---|---|---|---|
| Wire Rope: | 1.2 mm to 4.0 mm | Mesh Type: | Ferruled |
| メッシュ オリエンテーション: | 横,垂直 | Rope Constructions: | 7 x 7 , 7 x 19 |
| パネルシート: | 幅および長さでカスタマイズされる | Material: | High Grade AISI316 |
| ハイライト: | stainless steel wire rope mesh,anti-theft backpack protector mesh,bag protector wire rope mesh |
||
| Attribute | Value |
|---|---|
| Material | High Grade AISI316 |
| Wire Rope | 1.2 mm to 4.0 mm |
| Rope Constructions | 7 x 7, 7 x 19 |
| Mesh Type | Ferruled |
| Finished | Ultrasonic Bath, Black Oxide |
| Mesh Orientation | Horizontal, Vertical |
| Panel Sheet | Customized in width and length |
Manufactured from 316 'marine grade' stainless steel, the Webnet mesh system is designed for balustrades requiring contemporary infill solutions.
| Hole Size (Opening) | 1.2MM(3/64) (7 x 7) | 1.6MM(1/16) (7 x 7) | 2.0MM(5/64) (7 x 7) | 2.4MM(3/32) (7 x 7) | 3.2MM(1/8) (7 x 19) |
|---|---|---|---|---|---|
| 20 x 35mm | YT-1235 | ||||
| 25 x 42mm | YT-1225 | YT-1625 | |||
| 30 x 52mm | YT-1230 | YT-1630 | YT-2030 | ||
| 35 x 60mm | YT-1235 | YT-1635 | YT-2035 | ||
| 38 x 66mm | YT-1238 | YT-1638 | YT-2038 | YT-2438 | |
| 40 x 69mm | YT-1240 | YT-1640 | YT-2040 | YT-2440 | YT-3040 |
| 50 x 86mm | YT-1250 | YT-1650 | YT-2050 | YT-2450 | YT-3050 |
| 60 x 104mm | YT-1260 | YT-1660 | YT-2060 | YT-2460 | YT-3060 |
| 70 x 120mm | YT-1270 | YT-1670 | YT-2070 | YT-2470 | YT-3070 |
| 76 x 131mm | YT-1276 | YT-1676 | YT-2076 | YT-2476 | YT-3076 |
| 80 x 138mm | YT-1280 | YT-1680 | YT-2080 | YT-2480 | YT-3080 |
| 90 x 154mm | YT-1290 | YT-1690 | YT-2090 | YT-2490 | YT-3090 |
| 100 x 173mm | YT-12100 | YT-16100 | YT-20100 | YT-24100 | YT-30100 |
| 120 x 206mm | YT-12120 | YT-16120 | YT-20120 | YT-24120 | YT-30120 |
Wire Rope Net is custom manufactured in widths and lengths to suit balustrade, railing, or architectural applications. Diagonal and irregular shapes can also be supplied.
Mesh sizes range from 25mm x 25mm to 250mm x 250mm with stainless cable diameters from 1.2mm to 3.2mm. Mesh can be applied in either vertical or horizontal orientation depending on design requirements.
