| 起源の場所: | hebei |
|---|---|
| ブランド名: | Yuntong |
| 証明: | CE , SGS |
| モデル番号: | yt-ff |
| 最小注文数量: | 10平方メートル |
| 価格: | USD 2-50 |
| パッケージの詳細: | 各ピースのパッケージフィルム、1つのカートンに詰められたいくつかのピース |
| 受渡し時間: | 5～8営業日 |
| 支払条件: | T/T、ウェスタンユニオン、ペイパル |
| 供給の能力: | 300sqm/週 |
| 製品名: | X-tend ケーブル メッシュ | キーワード: | 鋼筋ロープの網 |
|---|---|---|---|
| ワイヤーロープ: | 1.2 mmから4.0 mm | メッシュタイプ: | フェルル |
| 材料: | 高品位AISI316 | ロープの構造: | 7 x 7、7 x 19 |
| 終了した: | 超音波浴、黒い酸化物 | パネルシート: | 幅と長さでカスタマイズされています |
| ハイライト: | stainless steel indoor stair railings,50mm X Tend cable mesh,stair railing protection cable mesh |
||

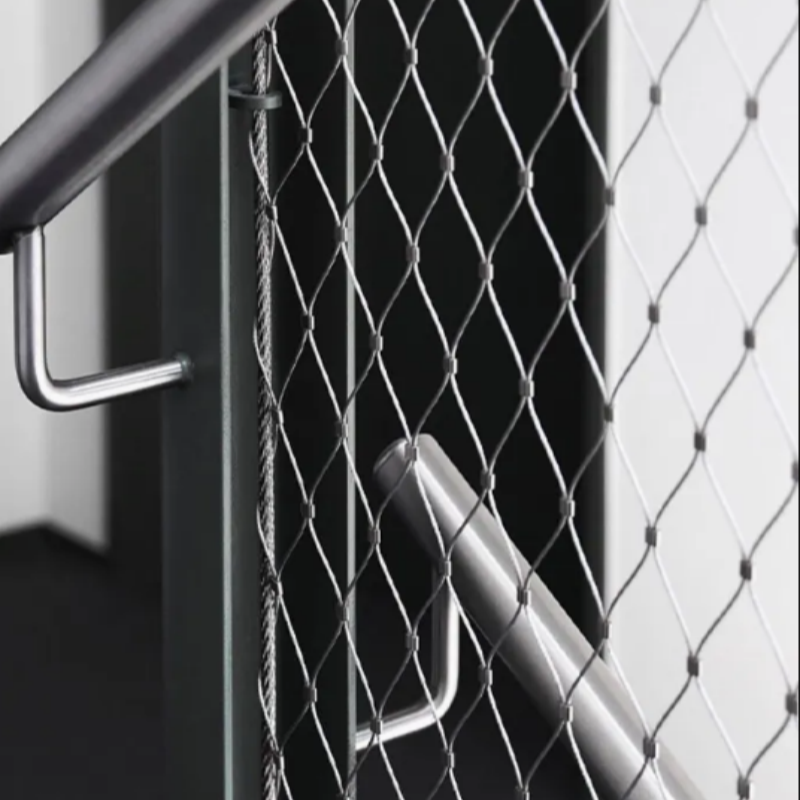

Stainless Steel 50mm X Tend Cable Mesh In Indoor Stair Railings Protection
X-TEND cable mesh needs to be secured in place with either border cables or perimeter tubes.

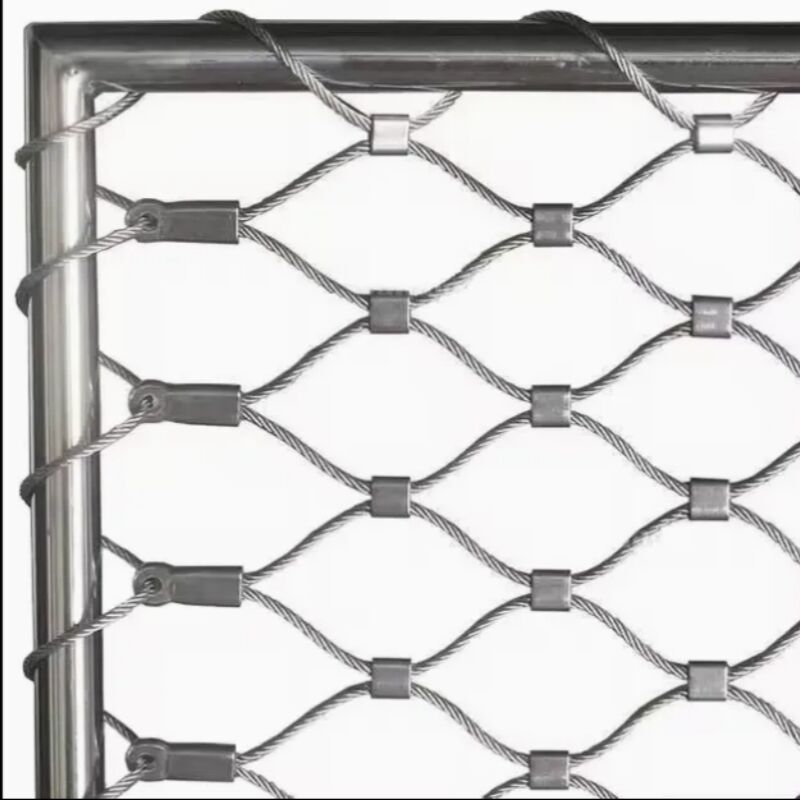

These transfer the force exerted around the complete perimeter of the flexible mesh panel to the supporting structure, balustrade or railing. Border cables deflect in response to this force adding unique and elegant form to the application. Where aesthetics demand a more linear or regular mesh panel free of deflection, then the mesh can be laced directly to a rod or tube frame.
We provides balustrade assemblies with the cable mesh preinstalled on stainless steel frames. Webnet Mesh is available in rectangular or rhomboid form in different sizes and mesh widths. Special assembly kits make installation easy.
X Tend Cable Mesh Specifications Sheet :
|
Hole Size (Opening) |
1.2MM(3/64) (7 x 7 ) |
1.6MM(1/16) (7 x 7 ) |
2.0MM(5/64) (7 x 7 ) |
2.4MM(3/32) (7 x 7 ) |
3.2MM(1/8) (7 x 19 ) |
| 20 x 35mm | YT-1235 | ||||
| 25 x 42mm | YT-1225 | YT-1625 | |||
| 30 x 52mm | YT-1230 | YT-1630 | YT-2030 | ||
| 35 x 60mm | YT-1235 | YT-1635 | YT-2035 | ||
| 38 x 66mm | YT-1238 | YT-1638 | YT-2038 | YT-2438 | |
| 40 x 69mm | YT-1240 | YT-1640 | YT-2040 | YT-2440 | YT-3040 |
| 50 x 86mm | YT-1250 | YT-1650 | YT-2050 | YT-2450 | YT-3050 |
| 60 x 104mm | YT-1260 | YT-1660 | YT-2060 | YT-2460 | YT-3060 |
| 70 x 120mm | YT-1270 | YT-1670 | YT-2070 | YT-2470 | YT-3070 |
| 76 x 131mm | YT-1276 | YT-1676 | YT-2076 | YT-2476 | YT-3076 |
| 80 x 138mm | YT-1280 | YT-1680 | YT-2080 | YT-2480 | YT-3080 |
| 90 x 154mm | YT-1290 | YT-1690 | YT-2090 | YT-2490 | YT-3090 |
| 100 x 173mm | YT-12100 | YT-16100 | YT-20100 | YT-24100 | YT-30100 |
| 120 x 206mm | YT-12120 | YT-16120 | YT-20120 | YT-24120 | YT-30120 |
Generally, there are two types of buckle: one is closed-type buckle and the other is open-type buckle. Features of closed type: the mesh has multiple steel wire ropes combined together, and the closed buckle is relatively stronger, but there are multiple joints at one end of the closure. Open-type features: the whole mesh can be made with a steel wire rope, which is convenient for installation and has a beautiful overall effect.
