| 起源の場所: | 河北省、中国 |
|---|---|
| ブランド名: | Yuntong |
| 証明: | CE |
| モデル番号: | YT-F-2075 |
| 最小注文数量: | 10平方メートル |
| 価格: | USD 2-50 |
| パッケージの詳細: | 防水生地、カートンボックスまたは木製ケース |
| 受渡し時間: | 5～8営業日 |
| 支払条件: | T/T、ウェスタンユニオン、ペイパル |
| 供給の能力: | 300sqm/週 |
| 製品名: | ステンレススチールロープメッシュ | キーワード: | ステンレスケーブルメッシュ |
|---|---|---|---|
| 材料: | SS304、SS316 | メッシュホールサイズ: | 50mmから100mm以上まで |
| メッシュタイプ: | シームレスフェラル | 製品タイプ: | X テンド ワイヤー ロープ メッシュ |
| メッシュサイズ: | カスタム | ワイヤーロープの直径: | 2.0mm、2.5mm、3.0mm |
| ハイライト: | flexible stainless steel rope mesh,anti-fall netting for zoo cage,stainless steel balcony stair mesh |
||

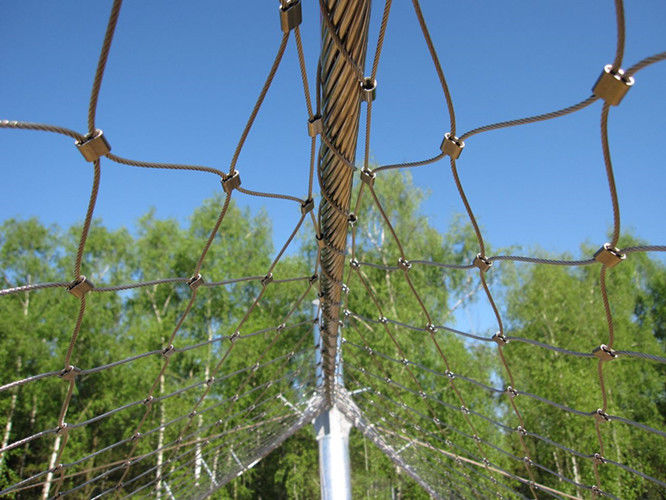

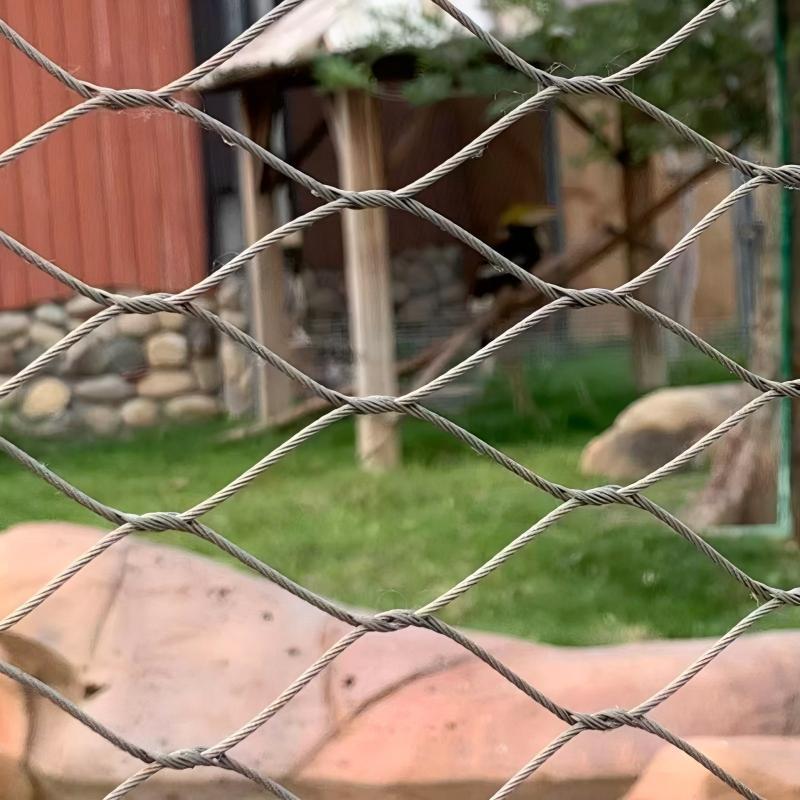

Flexible Stainless Steel Rope Mesh Anti-Fall Netting for Zoo Cage Fence Balcony Stair
The product features of Stainless Steel Rope Mesh
Material: stainless steel 304, 304L, 316, 316L.
Ferrule material: tinned copper, nickel plated copper, stainless steel.
Surface treatment: primary color or black oxide finish.
Cable diameter: 1.0-5.0 mm.
Mesh opening sizes: 25-200 mm.
Mesh opening angles: 20°, 30°, 60°, 70°, 75°. Mesh aperture at 60° as standard opening.
Ordering: specific to order, according to the project.
Construction of wire cable: 7 × 7, 7 × 19.
Connection: ferrule or knotted.
The Stainless Steel Rope Mesh is rhombus mesh, has excellent flexible performance, virtually
indestructible, most impacting-resistant and breaking resistant force, most resisting rain, snow, hurricane.
The stainless steel wire rope woven mesh material is used high quality stainless steel wire cable, the
stainless steel grade includes AISI 304 or AISI 316 material group.
Brief Intructions :
| Product Name | Architectual Facade Cladding |
| Mesh Style | X-tend Mesh |
| Mesh Type | Seamless Ferruled |
| Ferrules | Stainless Steel Ferrules or Aluminum Ferrules |
| Application | Architectual Facade Cladding |
| Material | SS304 , SS316 , SS316L , |
| Wire Rope | 2.0 mm , 2.5 mm , 3.0 mm |
| Mesh Aperture | 50 x 50 mm , 60 x 60 mm , 75 x 75 mm , 100 x 100 mm |
| Mesh Angle | 60 Degree |
| Mesh Orientation | Horizontal or Vertical |
Features of Stainless Steel Wire Cable Rope Net
The pliable, high-strength mesh system provides architects and designers with the scope to create solutions for many different applications. It is UV and weather resistant.Webnet mesh can also be supplied in a black anodised or a galvanised finish.
Our technical support team is available to offer full design and technical advice on projects of any scale and complexity.We provides balustrade assemblies with the cable mesh preinstalled on stainless steel frames. Webnet Mesh is available in rectangular or rhomboid form in different sizes and mesh widths. Special assembly kits make installation easy.
